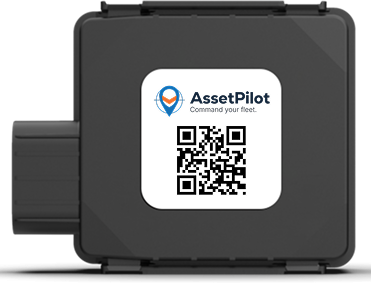

AP230 (Wired)

AP230 is a robust GPS tracking device designed for versatile applications, offering reliable global coverage through LTE Cat M1, NB-IoT, and GSM connectivity. It is also a durable GPS tracker, well-suited for various fleet management and asset tracking applications. Its high temperature tolerance and IP68 rating means that it excels in any environment. 

Durable Design: The IP67-rated casing ensures protection against dust and water, making the it suitable for use in harsh environmental conditions.
Reliable Connectivity: With support for LTE Cat M1, NB-IoT, and GSM networks, the device offers dependable global coverage, ensuring continuous tracking capabilities.
Flexible Installation: The innovative click-type two-phase closing mechanism allows for easy installation without the need for additional tools, reducing setup time and effort.

Advanced GNSS Support:It supports multiple satellite systems, including GPS, GLONASS, GALILEO, BEIDOU, and QZSS, providing precise location tracking.
Bluetooth® Connectivity: Equipped with Bluetooth® 4.0 + LE, the device enables wireless connections with external peripherals, such as sensors for temperature and humidity monitoring.
Multiple I/O Options: The tracker features configurable digital and analogue inputs and outputs, as well as impulse inputs, allowing for flexible remote monitoring and control.
Backup Battery: A 170 mAh Li-Ion backup battery ensures continuous operation during power interruptions, enhancing reliability.

Dimensions: 70.5 x 67.0 x 25.6 mm (L x W x H); 85.0 mm length with connector socket.
Weight: 75 grams.
Power Supply: Operates within a voltage range of 10–30 V DC, with overvoltage protection.
Operating Temperature: Without battery: -20 °C to +85 °C; with battery: -20 °C to +40 °C.
Ingress Protection: IP67-rated, indicating high resistance to dust and water ingress.
Memory: 128 MB internal flash memory for data storage.
Interfaces:
- Inputs: 3 digital inputs, 1 negative input, 2 impulse inputs, 2 analogue inputs.
- Outputs: 3 digital outputs.
- Connectivity: Micro-USB 2.0 port, 1-Wire interface for peripheral connections.
